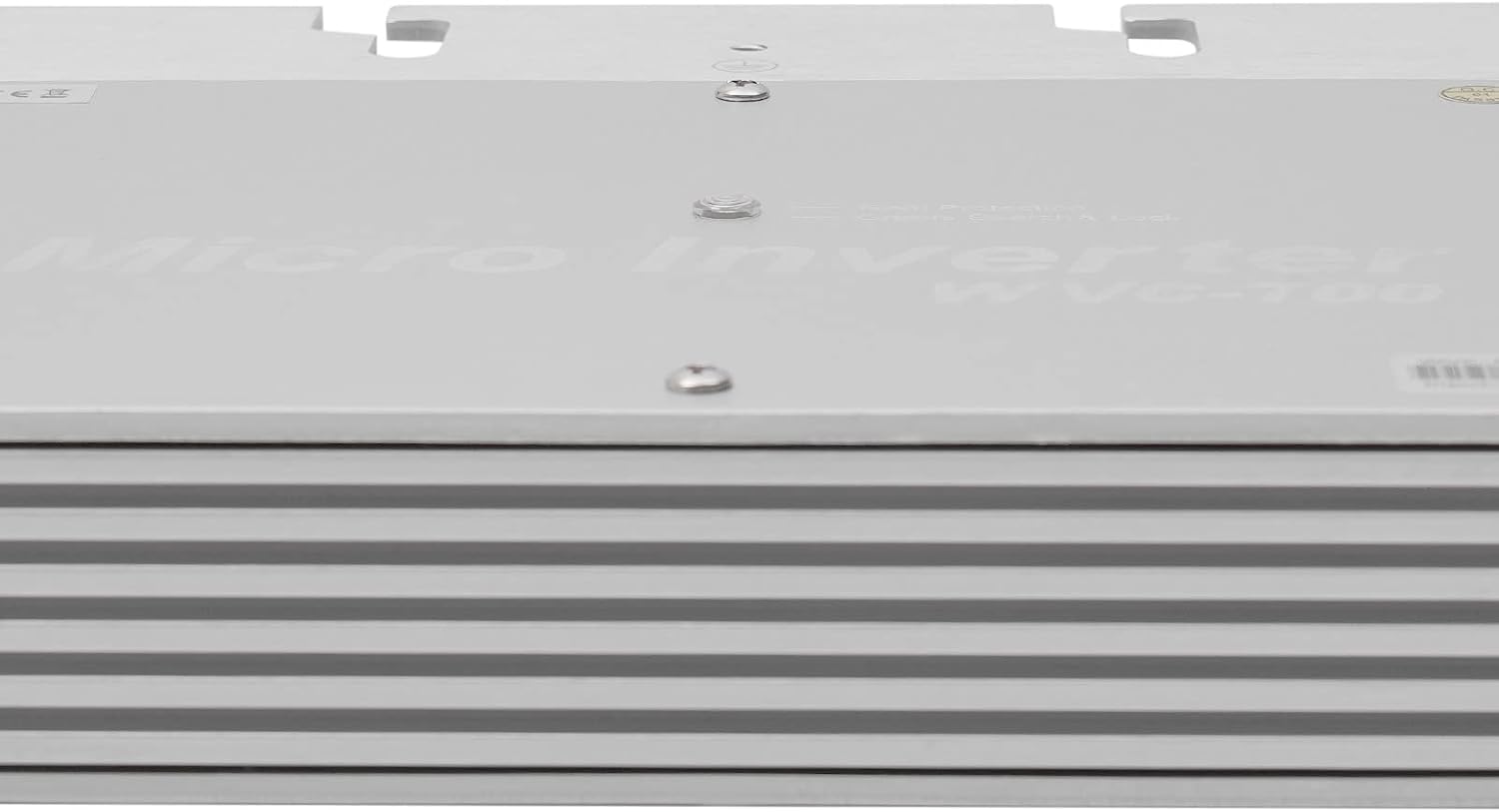

700W Solar Grid Tie Micro Inverter, IP65 Waterproof, MPPT & LCD Display, 17-50V Input (54V Max)/120V AC Output, 80-160VAC, Pure Sine Wave, Auto Power Transmission for 24V 36V Solar Panel

ApplicationThis solar inverter is mainly used for power stations, schools, and home grid connections.InstallationStep 1: Install the inverter on the bracket of the photovoltaic panel with the screws.Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug. Step 4: Connect the AC output cable to the AC main cable;Step 5: Repeat steps 1 to 3, install and connect all inverters;Step 6: Connect the AC main cable to the utility grid to start your green energy journey.SpecificationMaterial: Aluminum AlloyColor: SilverModel: XJ-WVC-700WPlug: US StandardVoltage: 110VMaximum Input Power: 2 × 350WRecommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 30-50VMaximum Input DC Voltage: 54VPeak Power Tracking Voltage: 22-45VOperating Voltage Range: 17-50VMinimum/Maximum Starting Voltage: 22-50VMaximum DC Short Circuit Current: 40AMaximum Input Working Current: 30AOutput Voltage: 120VOutput Peak Power: 700WRated Output Power: 650WattRated Output Current: 6.36ARated Voltage Range: 80-160VACRated Frequency Range: 57-62.5HzPower factor: >99%Number of Connections Per Series Circuit: 6 (Single-phase)Output Efficiency: 120V Static MPPT Efficiency: 99.5% Maximum Output Efficiency: 91.2% Power Loss at Night: <1WTotal Wave Distortion: <5%Operating Temperature Range: - 40 ℃ to+60 ℃Waterproof Grade: IP65Heat Dissipation Mode: Self CoolingElectromagnetic Compatibility: EN50081.Part1 EN50082.Part1Power Grid Disturbance: EN61000-3-2 Safety Regulation EN62109Grid Detection: DIN VDE 1026 UL1741Gross Weight: 2.45kg/5.4lbsNet Weight: 1.8kg/3.96lbsPackage Size: 34*24*11.5cm/13.38*9.44*4.52inProduct Size: 21.3*5.8*25cm/8.39*2.28*9.84inPackage Included1*Solar Inverter1*AC Connection Cable1*Chinese User Manual1*English User Notes ManualAll Accessories Needed for Installation

• [Smart Power Capture] Maximize solar energy harvest with a 99.5% static MPPT efficiency algorithm that locks the peak power point, boosting generation by over 25%. Adaptive tracking ensures optimal performance even in low-light conditions.
• [Ultra-Efficient Transmission] Revolutionary 99.9% reverse power transmission technology prioritizes local loads in grid-tied mode, slashing energy waste. High-frequency switching and 32-bit DSP control deliver stable, low-distortion pure sine wave output (<5% THD).
• [All-Weather Durability] Built to endure with IP65 waterproofing, -40℃ to +60℃ operating range, and self-cooling aluminum alloy design. Dust and water resistance guarantee uninterrupted outdoor operation for years.
• [Scalable Flexibility] Stack unlimited units in parallel for single-phase or three-phase systems. Sync outputs via master control signals to meet residential, school, or small power station demands effortlessly.
• [Plug-and-Play Safety] Fully isolated input/output design with multi-layer protections (over-voltage, under-voltage, short-circuit, overload, over-temperature). Rounded corners and LED status indicators ensure hassle-free installation and monitoring.
