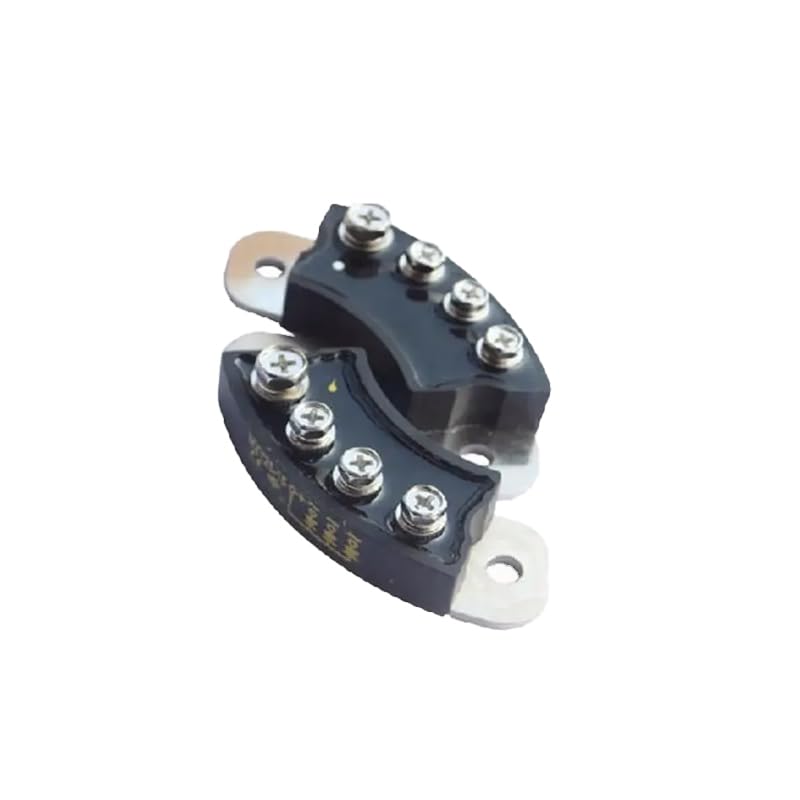

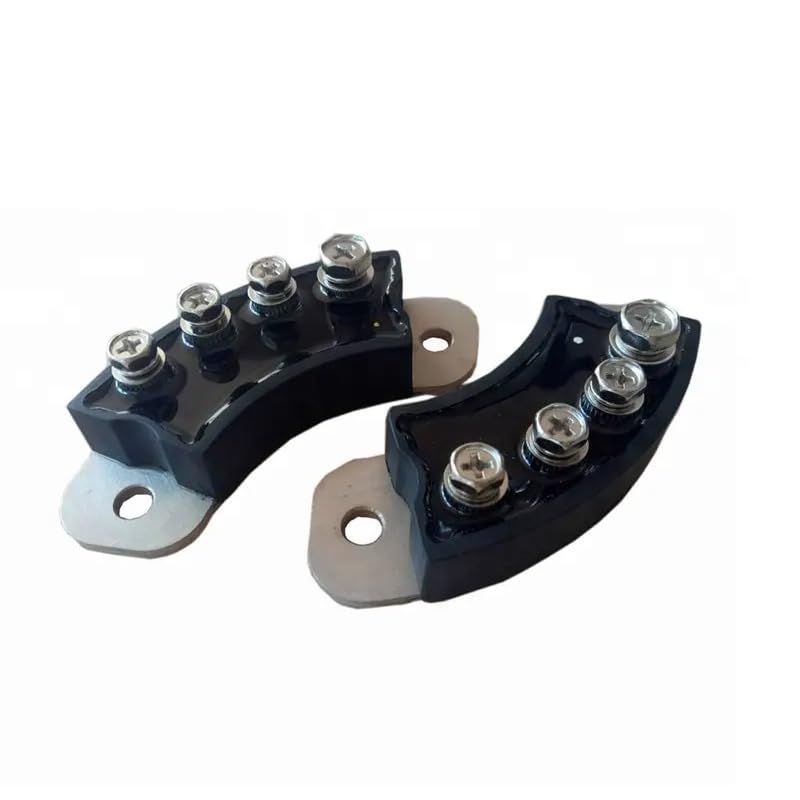

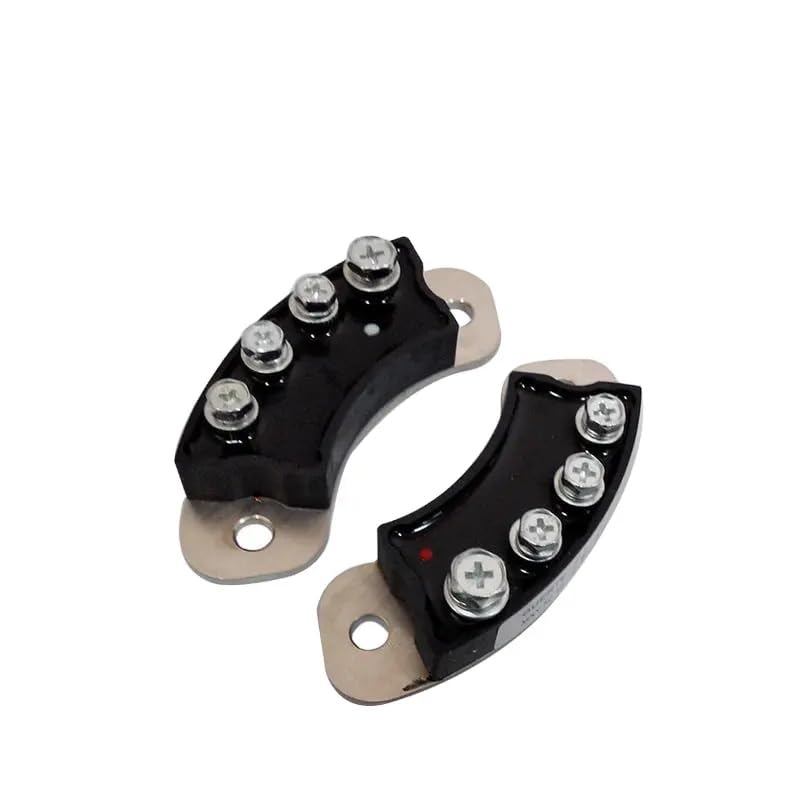

A Pair Generator Parts Rectifier Bridge Diode MXG50-12 MXG(Y) 50-12 70mm for Alternator

A Pair Generator Parts Rectifier Bridge Diode MXG50-12 MXG(Y)50-12 70mm For Alternator The MXG/Y series of rotary diode bridge rectifier modules are rectifier modules used for brushless generators, primarily for converting the AC output of a brushless generator into DC for use by loads. These modules use high-performance silicon-controlled rectifiers and fast recovery diodes to achieve high efficiency, low leakage current, low voltage drop, and high reliability, while also providing various protection features such as overcurrent, overvoltage, and overtemperature protection to ensure safe operation of the brushless generator. The core component of a rotary diode bridge rectifier is the rotary diode, which is a special type of diode that can frequently switch between forward and reverse at high frequencies to achieve rectification and filtering of the output voltage of the brushless generator. The MXG/Y series modules contain multiple rotary diodes to meet the requirements of brushless generators with different power and voltage levels. Therefore, the MXG/Y series of rotary diode bridge rectifier modules are an important component of brushless generators, enabling the rectification and filtering of the output voltage of the brushless generator, as well as providing various protection features to ensure safe and efficient operation of the generator.

• 【AC-to-DC Conversion for Brushless Generators】Designed to convert AC output from brushless generators into stable DC power, ensuring reliable energy supply for connected loads with high efficiency and minimal voltage drop.
• 【Advanced SCR & Fast Recovery Diodes】Built with high-performance silicon-controlled rectifiers (SCRs) and fast recovery diodes for low leakage current, reduced heat loss, and consistent performance under high-frequency switching.
• 【Multi-Protection Safety System】Integrated overcurrent, overvoltage, and overtemperature protection safeguards generator operation, preventing damage and ensuring long-term safety.
• 【High-Frequency Rotary Diode Core】Features specialized rotary diodes for rapid forward/reverse switching, enabling precise rectification and voltage filtering across diverse power/voltage levels.
• 【Durable & Versatile Application】Supports brushless generators of varying capacities (16A–150A), delivering robust reliability for industrial, commercial, and backup power systems.
