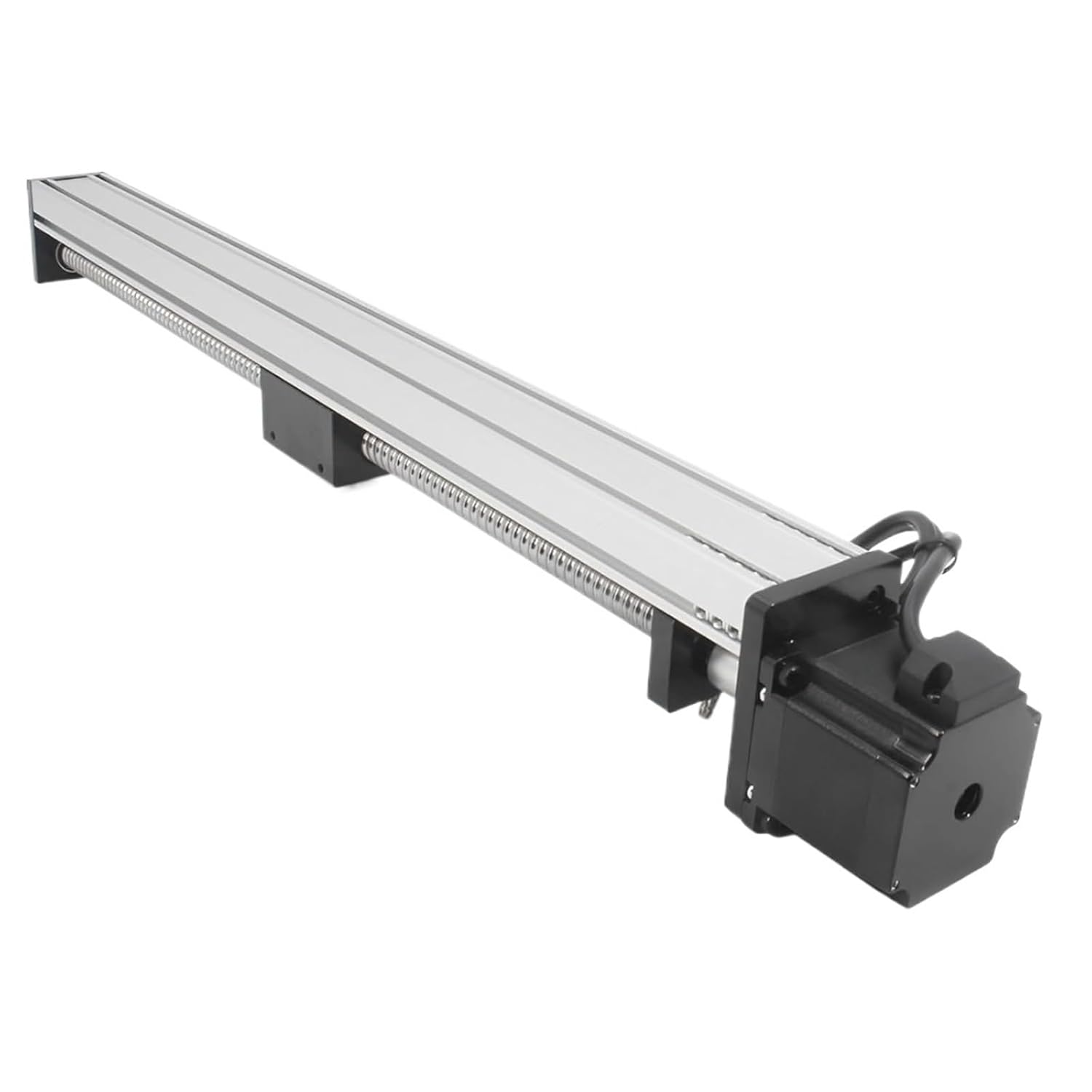

Cross Sliding Table Linear Motion Rail Slide 450mm Length Travel Linear Stage Actuator with Square Linear Rails Ballscrew SFU1605 with Nema23 Stepper Motor

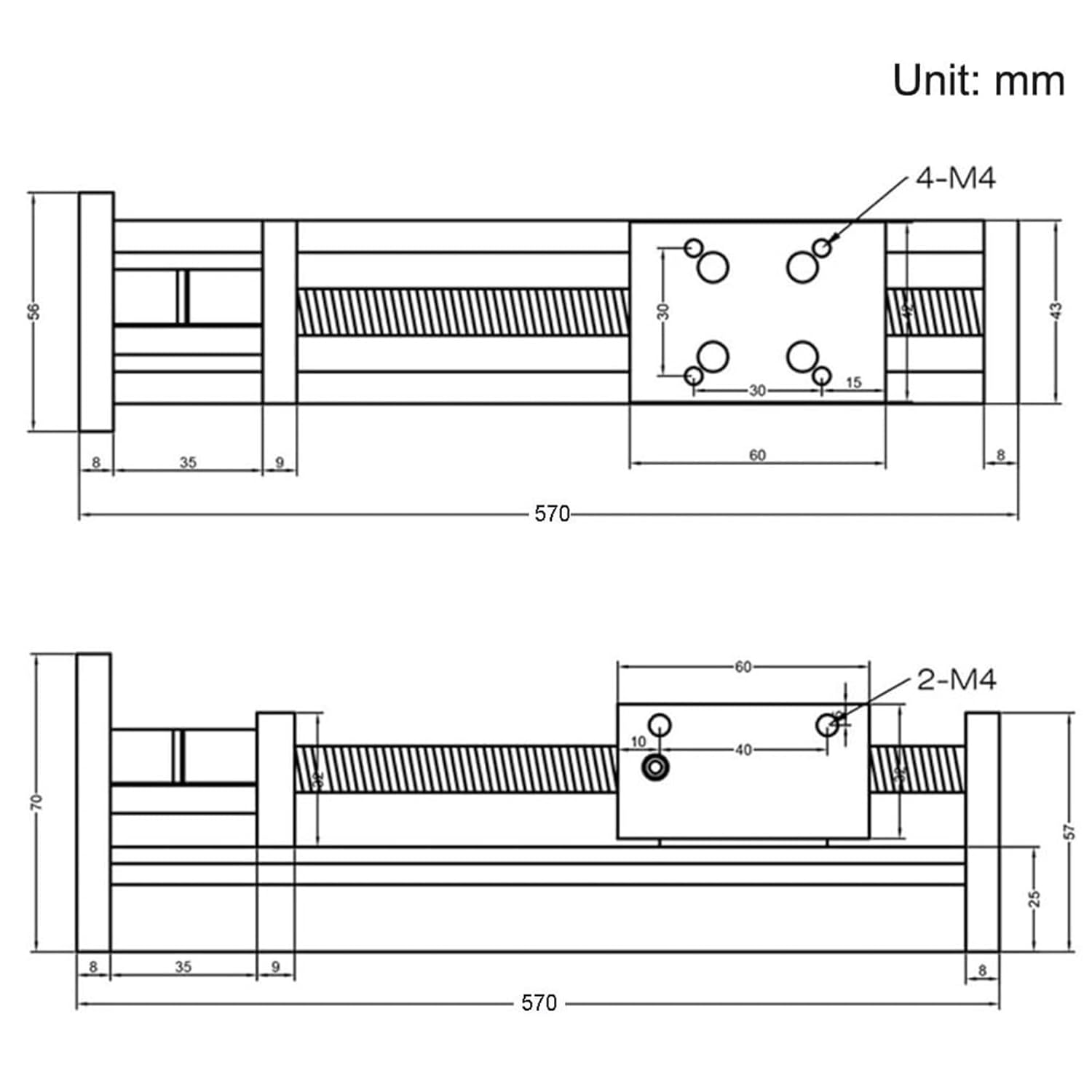

1. Linear rail slide design, high precision, more stable operation, sliding nut sideways, limit switch can be installed at any position.2. The slider is made of aluminum alloy and oxidized, beautiful and elegant.3. It is an important hardware device for industrial machinery, which can accurately control the accuracy and speed of the moving parts of mechanical equipment.Specifications:Ball screw: SFU1605 (screw diameter 16mm, pitch 5mm, screw rotation one circle, panel movement 5mm)Accuracy: C7Effective stroke: 450mmGuide rail diameter: 12mmRepeat positioning accuracy: ±0.03mmHorizontal maximum load: 30kgVertical maximum load: 15kgRepeat positioning accuracy ±0.03mmPacking list:1 linear guide rail

• 1. The ball screw design is adopted, the operation noise is low, and it will not interfere with the work of others.
• 2. The linear axis is chrome-plated and equipped with linear bearings, which makes the operation more stable and efficient.
• 3. It is used for production machinery, testing equipment, precision measurement, and fine-tuning of displacement, positioning and movement of mechanical equipment.
• 1. The guide rail is made of bearing steel, which has high wear resistance and low noise
• 2. Adding a stable bearing at the motor end can better maintain accuracy and improve operating stability
• 3. The bottom M4 movable nut is easy to install, and the corresponding nut can be placed on the side according to requirements
