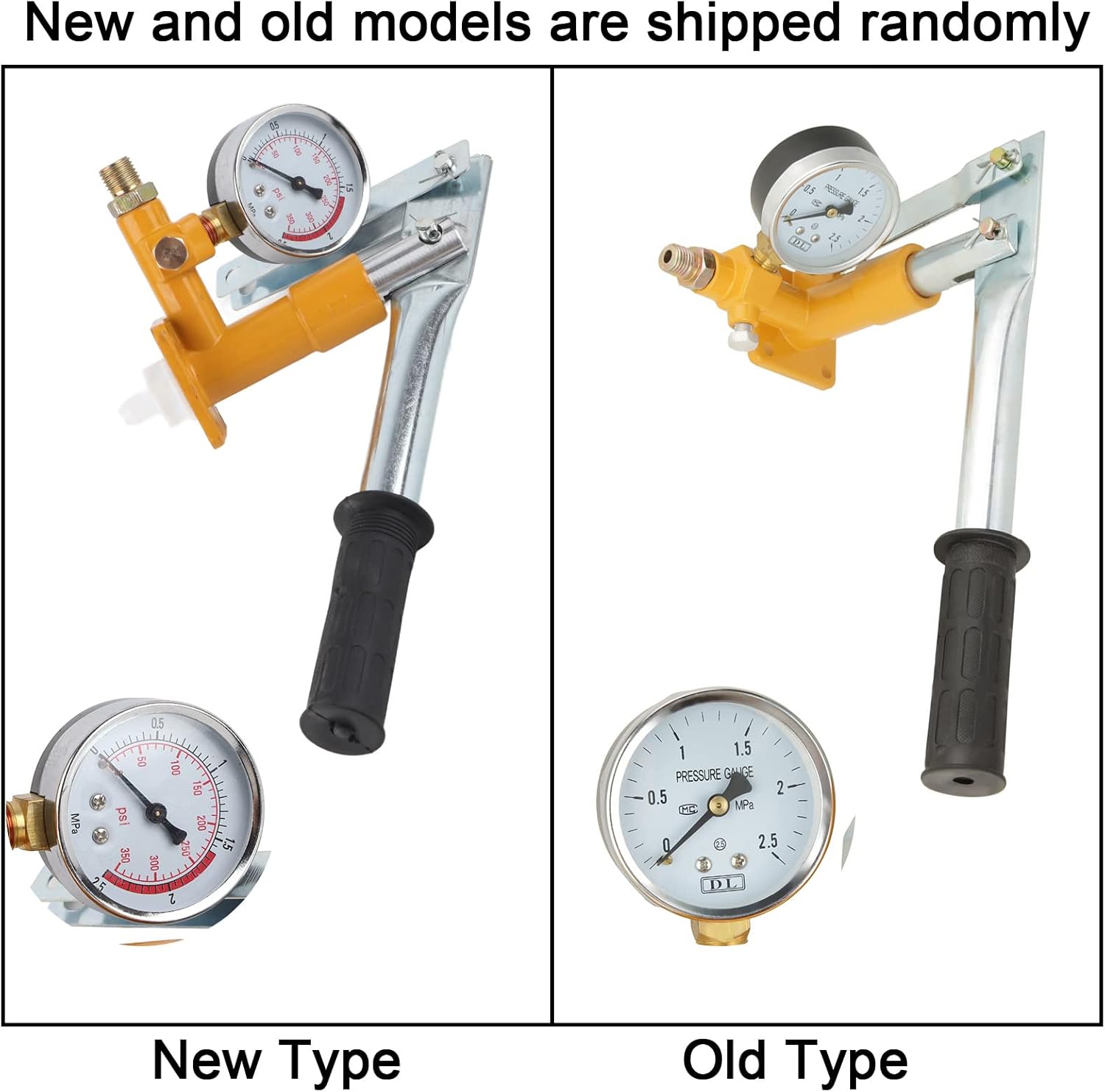

Hydraulic Pressure Test Pump, 2.5Mpa 25KG Manual Hydraulic Water Pressure Test Pump, Pipeline Tester Tool for a Variety of Pressure Vessels, Pipes, Valves and Other Pressure Test, 13ml / Time

Specifications:Material: aluminumPressure column outer diameter: 2.8cm / 1.10inPressure: 2.5MPa: 13ml / timeColor: YellowWeight: 2090gHow to use? (Instructions)1. Connect the water hose to the water pipe2. Close the switch when the pipe is filled with water and the air is discharged3. Fill the with water, and then tilt the plate up and down, began to test pressure4. When the pressure readings rise to the need for pressure, you can stop the pressure;5. After stopping the pressure, if the pressure does not drop on the pressure it can prove that the pipe pressure performance is good, on the contrary, it proves that the pipe sealing performance is not good,The specific steps of the test pressure are as follows:1. The hot and cold water pipes connected together with the hot and cold water to form a circle, into a tube, and test the pump connected to any one outlet can be the pressure pointer is 0 pressure. When all the water pipes are fully welded before they can test pressure, in the pressure before the closure of all the plug, close the water inlet valve.2. When measuring pressure, shake the jack until the pressure pointer to 0.9-1.0 or so, that is the current pressure is 3 times the normal water pressure3. Keep this pressure for a certain amount of time. Different water pressure measurement time is not the same, PPR, aluminum plastic PPR, steel PPR and other welded pipe is 30 minutesPackage included:1 x Test pump1 set x AccessoriesNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• ◇「Testing and Pressure Range」- Pressure column outer diameter: 2.8cm / 1.10in, Pressure: 2.5MPa, : 13ml / time, Color: Yellow, Weight: 2090g
• ◇「Pressure Test Pump」- Suitable for water, or hydraulic oil as a medium, for a variety of pressure vessels, pipes, valves and other pressure test
• ◇「Multiple Advantages」- The outside box is made of aluminum material, which is more . Large dial, for clear reading, fashionable and generous. This is easy to install and use.
• ◇「Widely Application」- Normal tap water pressure of 0.3MPa, high-rise residential 0.4MPa, water pipe pressure pressure generally pressurized to 0.8MPa-1.0MPa. (Tap water 0.1MPa 1KG pressure)
• ◇「Manual Hydraulic Pump」- The hydraulic pressure test pump is designed efficiently and ergonomically. You can use it in pipeline, pressure container, irrigation, firemen
