MAK4 V2 Reinforced Carbon Frame KIT 8/9/10 Inch Series For Long Range/Freestyle FPV Racing UAV 1Set(MARK4 V2 10inch)

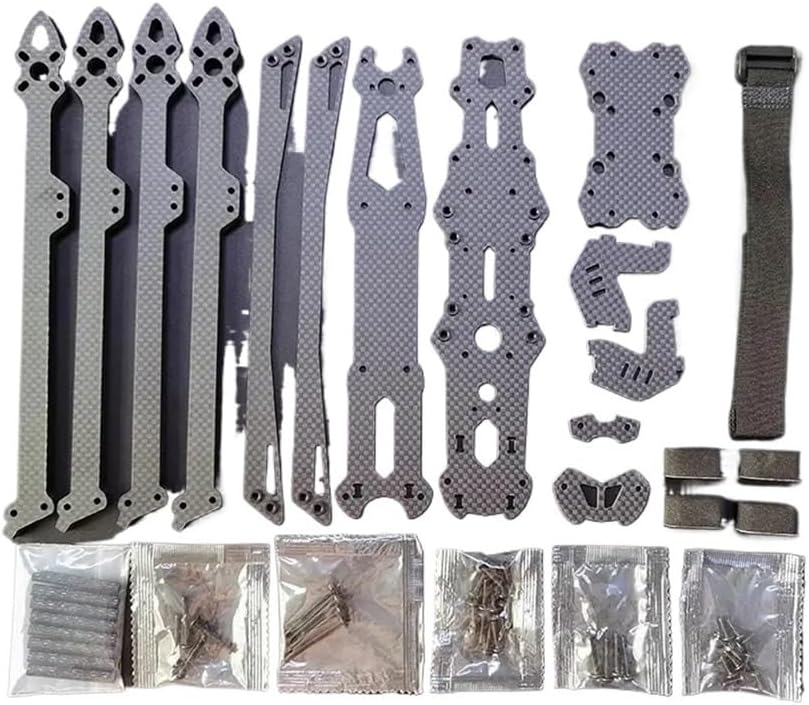

This MAK4 V2 Reinforced Carbon Frame KIT is a specialized hardware solution developed for professional 8/9/10-inch long-range UAVs and FPV propulsion platforms. The physical architecture is engineered to balance structural rigidity with the electronic component integration required for steady , ensuring stable cinematic-propulsion-alignment.Technical Specifications:- Model Series: MAK4 V2 (8" / 9" / 10")- Material: grade Carbon - Wheelbase: 367mm (8 inch) / 387mm (9 inch) / 427mm (10 inch)- Plate Thickness: 6mm Arms / 3mm Bottom / 2mm Top / 2.5mm Side- Stack Mounting: 30.5x30.5mm (FC) / 20x20 & 30.5x30.5mm (VTX)- Motor Mounting: 16x16mm & 19x19mm- Internal Space: 35mm Height- Application: Long Range FPV / Freestyle Racing / Heavy-Lift UAV buildsOrder Notes:- Assembly: This is a frame kit requiring assembly; electronics, motors, and props are not included.- Accuracy: Please allow slight deviations due to manual measurement protocols.- Color: Actual physical appearance may vary slightly due to monitor calibration and conditions.Package List:- MAK4 V2 Carbon Frame KIT x 1 Set (Including Hardware/Screws)

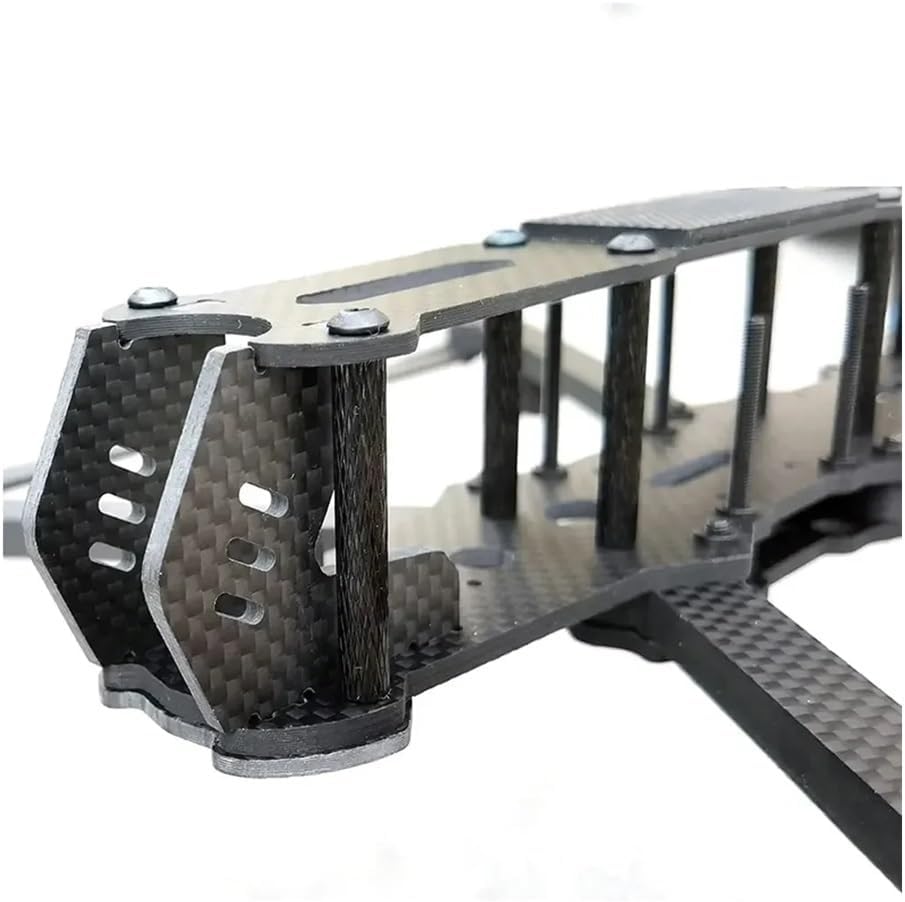

• Structural Craftsmanship: Precision-engineered with performance carbon composite featuring 6mm arms and 3mm bottom plates with 367mm/387mm/427mm wheelbases to ensure Consistent Performance during long-range mission cycles.
• Physical Feedback: Optimized for 8-10 inch propulsion architectures, the wide-wheelbase layout balances high-RPM resonance to provide stable physical feedback for Freestyle and Long Range flight platforms.
• Hardware Compatibility: Installation interface precisely aligned with 19mm mounts and 20*20mm / 30.5*30.5mm stack positions, featuring a 35mm inner height for secure hardware maintenance and deployment.
• Alignment Specifications: Features dimensions aligned with 16*16mm and 19*19mm motor mounts, maintaining verified physical balance within a weight range of 214g-227g for optimized center of gravity.
• Mission Readiness: Offers superior material stability and structural endurance against physical fatigue, making it a standardized solution for Long Range FPV builds, heavy-lift platforms, and Hardware Alignment.
