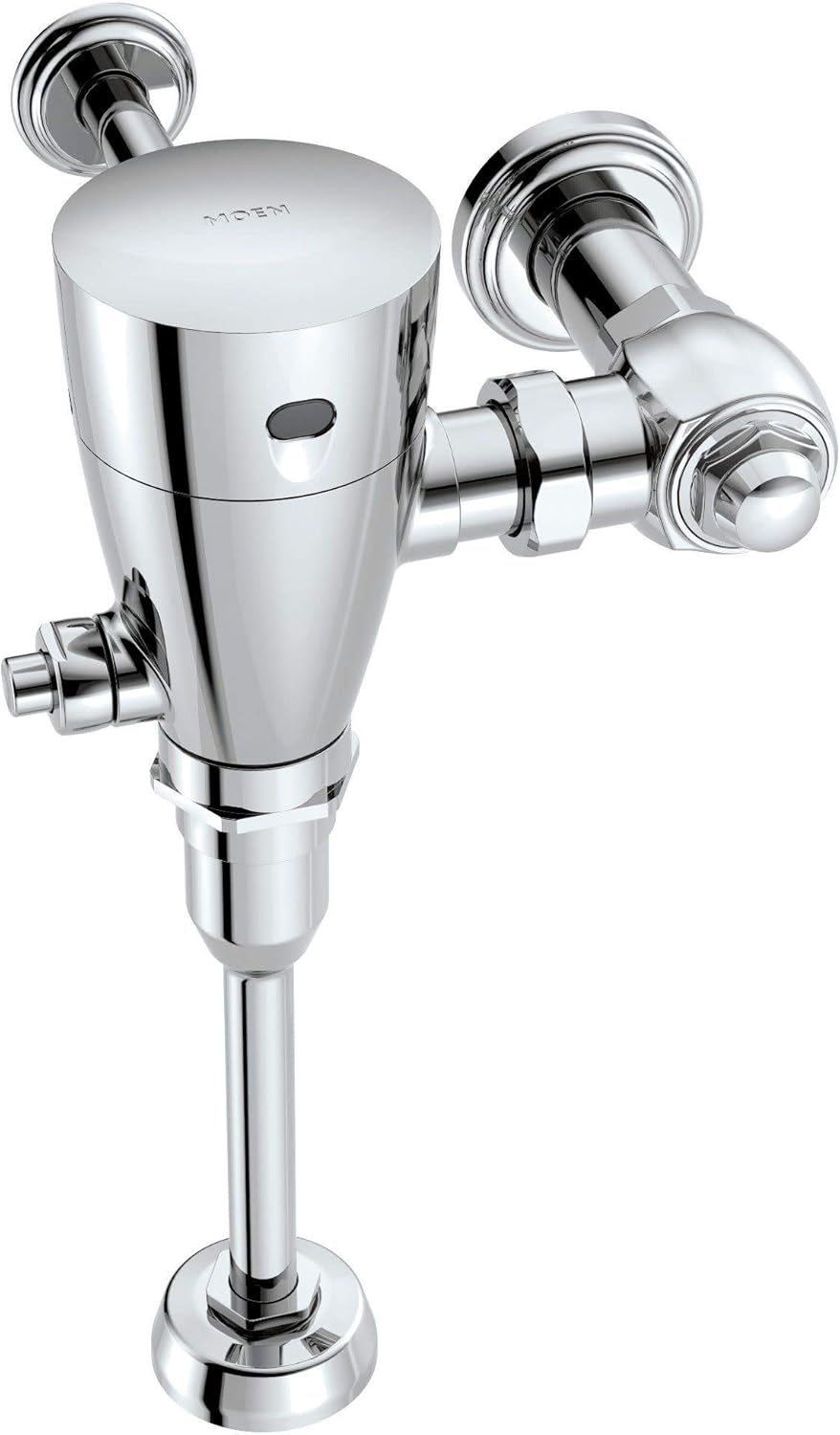

Moen 8315AC05 M-Power 3/4-Inch Urinal AC Powered Exposed Sensor-Operated Electronic Flush Valve .5 gpf, Chrome

Product Description Product description 8315AC05 Features: -Includes stops. -Ac powered sensor-operated electronic flush valve. Installation Type: -Urinal. Style: -Exposed. Color: -Chrome. Generic Specifications: -AC (12V DC) transformer (optional). Dimensions: Overall Height - Top to Bottom: -16.25". Overall Width - Side to Side: -7.25". Overall Product Weight: -11.56 lbs. This AC powered sensor-operated urinal flush valve has a metal construction with chrome plating for a bright, highly reflective, cool grey metallic look. This urinal flush valve features a 3/4-Inch IPS supply and 3/4-Inch top spud, a 6-Inch cable tube, a 3/4-Inch IPS angle stop that is vandal resistant and adjustable installation for right or left connection. It is equipped with adjustable sensor eyes, self-diagnostic electronics, a self-cleaning filter system and a piston flushing mechanism that prevents water hammer, requires little or no maintenance and outlasts diaphragm valves. This urinal flush valve is powered by a 12-Volt AC power transformer. The operating pressure is 10 to 125 psi, with 0.5 gpf (gallons per flush), a 24-hour sentinel flush and manual override button. This flush valve stands 16-1/4-Inch tall and is ADA compliant. Moen Commercial offers a full line of faucets, electronic flush valves and showering systems built to withstand the harshest conditions in commercial and institutional buildings and construction. They're built for constant use, and occasional misuse. They're built for the real world. From the Manufacturer This AC powered sensor-operated urinal flush valve has a metal construction with chrome plating for a bright, highly reflective, cool grey metallic look. This urinal flush valve features a 3/4-Inch IPS supply and 3/4-Inch top spud, a 6-Inch cable tube, a 3/4-Inch IPS angle stop that is vandal resistant and adjustable installation for right or left connection. It is equipped with adjustable sensor eyes, self-diagnostic electronics, a self-cleaning filter system and a piston flushing mechanism that prevents water hammer, requires little or no maintenance and outlasts diaphragm valves. This urinal flush valve is powered by a 12-Volt AC power transformer. The operating pressure is 10 to 125 psi, with 0.5 gpf (gallons per flush), a 24-hour sentinel flush and manual override button. This flush valve stands 16-1/4-Inch tall and is ADA compliant. Moen Commercial offers a full line of faucets, electronic flush valves and showering systems built to withstand the harshest conditions in commercial and institutional buildings and construction. They're built for constant use, and occasional misuse. They're built for the real world.

• Chrome finish to create a bright, highly reflective, cool grey metallic look
• Mechanical override button provides flushing in the event of power loss
• Automatic activation means valve can't be left -Inchon-Inch accidentally or allowed to run unattended
• Hands-free operation limits the spread of germs
• Third party certified by IAPMO and CSA to meet ASME A112.19.2M, ASSE 1037 and all applicable requirements referenced therein
