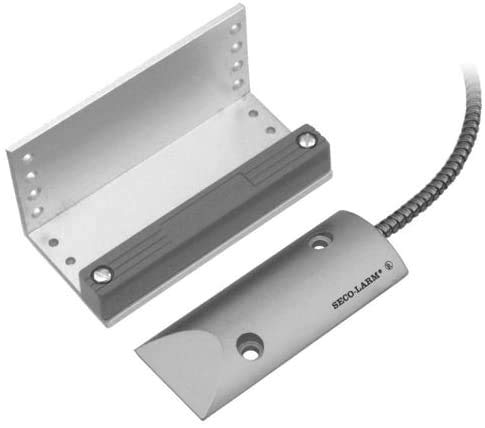

Seco-Larm SM-226L-3Q Overhead Door Magnetic Contact (Pack of 2), 2-3/4" (70mm) Gap, Open/Closed Loop (3 Wires), 24" (61cm) Armored Wire Leads, Adjustable to Fit Most Door-Channel Widths, Weatherproof
4.6 (47 items)
Limited Time SaleUS$28.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209145424 | Release Date | 2026/03/29 | List Price | US$19.20 | Model Number | 209145424 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Seco-Larm SM-226L-3Q Overhead Door Magnetic Contact (Pack of 2), 2-3/4" (70mm) Gap, Open/Closed Loop (3 Wires), 24" (61cm) Armored Wire Leads, Adjustable to Fit Most Door-channel Widths, Weatherproof Key Features - 2-3/4" (70mm) Gap for overhead doors - Adjustable to fit most door-channel widths - 24" (61cm) Armored wire leads - Reed switch has deactivated rhodium on gold underplating - For open or closed-loop circuits - Weatherproof IP66 – Epoxy sealed for weatherproof installation - Mounting bracket included Specifications - IP Rating: Weatherproof IP66 – Epoxy sealed - Operating Voltage: 12~24 VDC - Loop Type: Open/Closed loop - Electrical Configuration: SPDT - Operation Gap: 2-3/4" (70mm) - Material – Magnet: ABS plastic on L-bracket - Material – Switch: Heavy-duty cast-aluminum case - Material – Terminals: 24" (61cm) armored leads - Contacts: Deactivated rhodium on gold under-plating - Contact Rating: 0.2A@10VDC (max), 3W (max) - Operating Temperature: -15º~+160ºF (-25º~70ºC) - Switch Cycles: 50 Million (0.1mA@5VDC) - Switch Dimensions: 4-5/16" x 1-3/4" x 7/16" (110 x 44 x 11mm) - Magnet Dimensions: 3-15/16" x 2" x 2" (100 x 51 x 51mm) - Magnet Type: Alnico 5
- 2-3/4" (70mm) Gap for overhead doors
- Adjustable to fit most door-channel widths
- Reed switch has deactivated rhodium on gold underplating
- Weatherproof IP66 – Epoxy sealed for weatherproof installation
- Mounting bracket included
| Color | Silver |
|---|---|
| Model | SM-226L-3Q |
| Wattage | 3 watts |
| Terminal | Wire Leads |
| Brand Name | Seco-Larm |
| Unit Count | 2.0 Count |
| Switch Type | Magnetic Contact |
| Circuit Type | 2-way |
| Contact Type | Normally Closed |
| Manufacturer | Seco-Larm |
| Actuator Type | Plunger |
| Material Type | Aluminum |
| Mounting Type | Door Mount |
| Connector Type | Wire Leads |
| Control Method | Touch |
| Current Rating | 90 Amps |
| Operation Mode | automatic |
| Item Dimensions | 2.2 x 7.95 x 9.06 inches |
| Number of Items | 2 |
| Contact Material | Gold |
| Operating Voltage | 12 Volts |
| Specification Met | Ip66, Limited Lifetime Warranty |
| Number of Positions | 2 |
| Connectivity Protocol | Wi-Fi |
| International Protection Rating | IP66 |
