UC5815-S8 Digital Pulse Coil Tester 8 Channels 100-5000V Impulse Winding Tester Sampling Rate 200 Msps

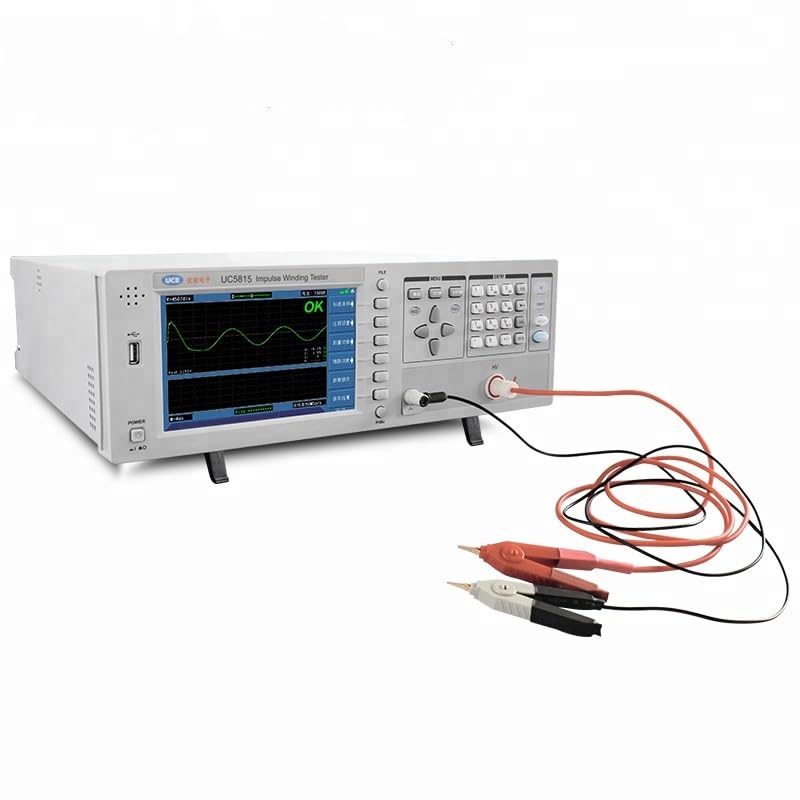

The UCS815-S8 8-channel pulse coil tester features a modern 7-inch 800×480 color TFT LCD display, along with a high-performance 32-bit processor and high-speed FPGA. With a sampling rate of 100 Msps and a sampling memory depth of 6.5 kBytes, the UCS815-S8 ensures highly accurate testing. Additionally, the instrument incorporates a high-stability high-voltage power supply and thyristor-module-controlled high-voltage switching components, significantly enhancing its precision, stability, and reliability.

• 100 Msps waveform sampling rate with 6.5 kBytes memory depth;7-inch 65k-color 16:9 TFT display (800×480 resolution)
• Four waveform comparison modes: Area, area difference, capacitance, and phase difference;Excellent test repeatability, ensuring stable and consistent results

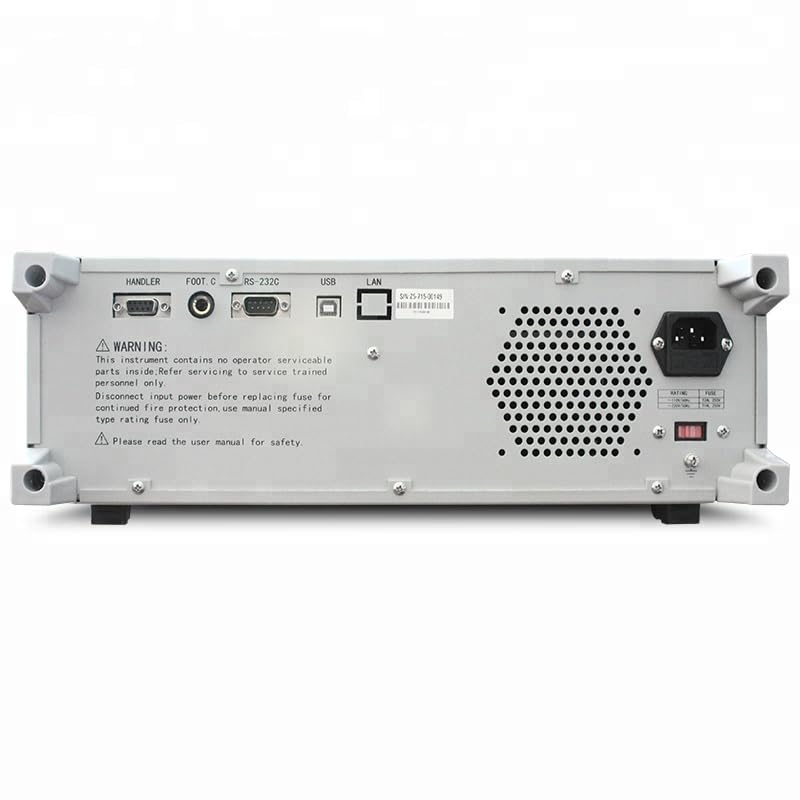

• Waveform horizontal stretching, shifting, and amplitude scaling for comprehensive observation;Advanced corona extraction function to detect potential insulation defects early;Standard interfaces: RS232C, HANDLER, USB HOST; optional USB Device, GPIB, and LAN
• Auto-save for instrument parameters and automatic loading of startup files;Standard auto-capture function to intelligently select the optimal sampling rate;Destructive testing mode for determining the appropriate test voltage
• Demagnetization pulse application to ensure waveform consistency;Standard sample averaging (up to 32 times) for noise reduction;Firmware upgrade via USB HOST;Supports FAT16/FAT32 file systems; quick save of screen images or waveform data via panel shortcuts
