XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor
XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor

XUNKUNER Worm Gear Gearbox NMRV040, Ratio 5:1,Input 14 mm 0.55",Output 18mm 0.7",RV40 NMRV-040 Worm Gear Reducer Metal Gearheads for Nema34 Stepper Motor/Servo Motor

flash sale iconLimited Time Sale
Until the end
18
06
26

US$26.94 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$17.96
quantity

Product details

Management number 211319021 Release Date 2026/04/04 List Price US$17.96 Model Number 211319021
Category
  1. Industrial & Scientific
  2. Power Transmission Products
  3. Gearboxes, Gearheads & Speed Reducers

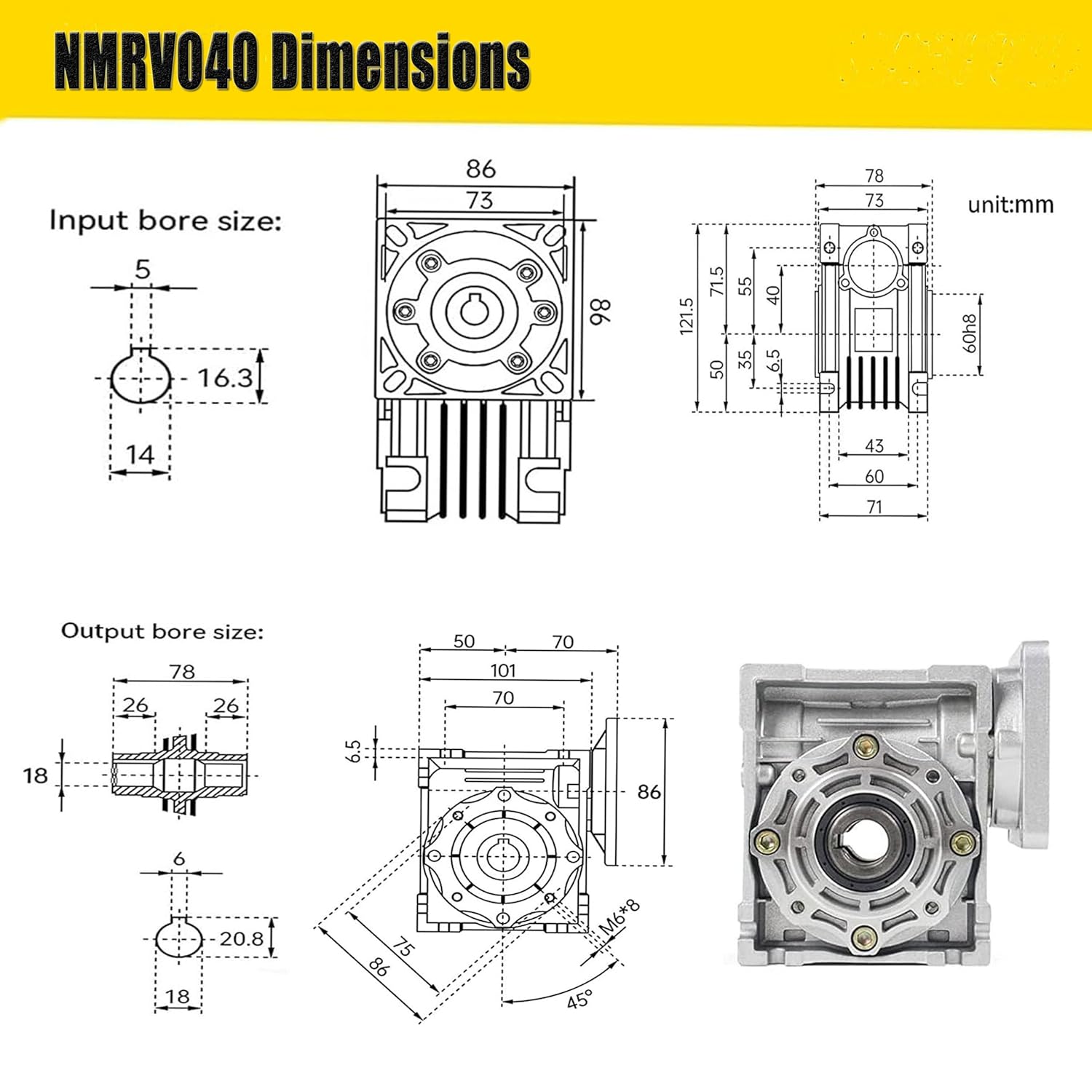

  • 【Specifications】Model: NMRV040 (small), input hole size: 14 mm 0.55" ,output hole size: 18mm 0.7",input flange model: NEMA34(86x86), material : aluminium alloy , application: Servo Motor/step motor,Color: slive
  • 【Material 】 1. The worm gear is made of ductile iron QT-400, which is well made. 2. The worm gear rod is made of 20CR round steel (carbonized and high-temperature treated, stable transmission, high efficiency). 3. The gearbox is made of high-quality ADC12 aluminum die-casting box, which has strong sealing, small volume, light weight, easy installation, and is not easy to corrode
  • 【Advantages 】The structure with a protection level of IP55 has good insulation effect against dust and moisture. It also has the characteristics of high torque, low noise, stable operation, strong adaptability, high overload, and strong impact resistance
  • 【 Application 】 With delay and torque increasing functions, it is widely used in mechanical equipment, light industry, food industry, chemical construction, textile industry, building materials, logistics, environmental protection and other fields
  • 【 Precautions 】 1.) Do not hit the casing of the gravity hammer reducer to avoid damage. 2. Regularly check whether the installation, sealing, and transmission shaft functions are functioning properly. 3.) The temperature of the lubricating oil should be below 85 ° C. When the oil temperature changes abnormally and produces abnormal noise, the inspection must be stopped immediately. 4.) The replacement of new spare parts must be officially used after operation and load testing
Brand Name XUNKUANER
Manufacturer XUNKUNER
Included Components 1PC NMRV-040 Worm Gear reducer
