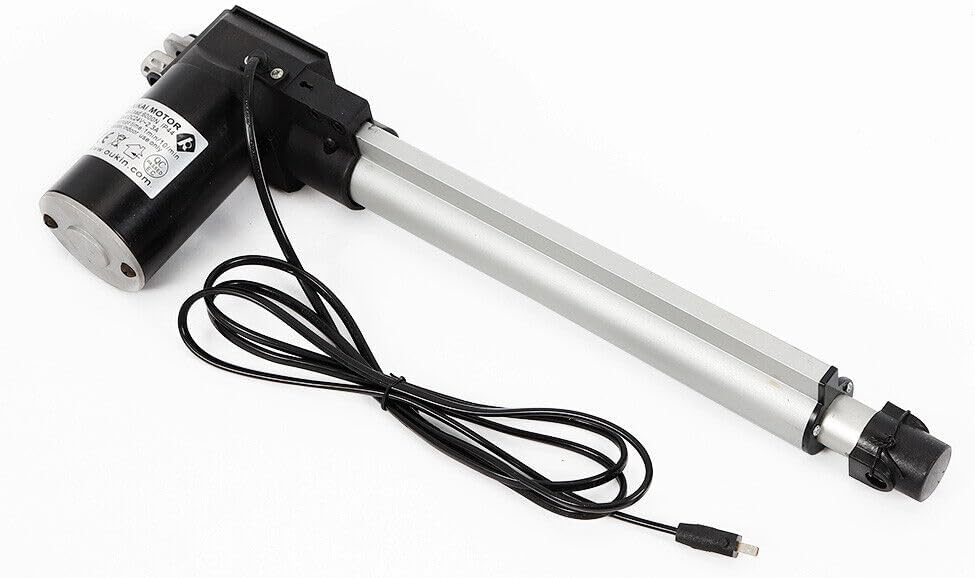

YIYIBYUS Recliner Replacement Motor Actuator, 24V DC Motor 9.8"/250mm Stroke Power Recliner Lift Chair Linear Actuator Motor or Electric Sofa Massage Chair Reclining Chairs
4.7 (38 items)
Limited Time SaleUS$37.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222266820 | Release Date | 2026/05/04 | List Price | US$25.20 | Model Number | 222266820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Product: Power recliner motor actuatorStroke length: 250mmPermanent magnet DC motor driveVoltage: 24VDCMaximum push / pull: 100KG / 100KGMinimum installation size (distance between the push holes and the two holes before and after the return of the putter):L = S (stroke) + 175mm;The distance between the push rod and the two holes before and after is extended to =2XS (stroke) +175mmNo load speed: maximum 40mm / SRated load rate: 5mm / S (600KG) -40mm / S (30KG)Ambient temperature: -5 C + + 50 CStandard protection level: IP44Unextended dimensions: 250mm + 175mm = 425mmExtended size: 250mm + 175mm + 250mm = 675mmFeatures:24VDC permanent magnet motorThrust up to 1000 N in push.and up to 1000 N in pull.Elegant and compact design with small installation dimensionsBuilt-in limit switches (not adjustable)Aluminium outer tube Ø30 mmAluminium inner tube ØØ24mmSteel back fixtureStandard protection class, IP44Noise level 48 dB (A), actuator not loaded.Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.Option:Standard stroke, 25-800 mm, can design as customer’s requirement.Free load speed, 6.5mm-45mm/sRated load speed, 4.5mm-40mm/sApplication:This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Packages:1 x Recliner Replacement Motor Actuator1 x 8-suffix AC Line1 x DC Line1 x Power Adapter1 x Embedded Hand Controller2 x Pins
- 【DC Motor】- Motor replacement is DC motor, small mounting dimensions, easy to install,compact design,This recliner lift chair motor features a compact design that makes it ideal for many applications either in the medical or industrial sector.
- 【Durable Material】- The electric recliner adopt for Aluminum actuator and durable PA6 plastic housing,safe and reliable.
- 【Application】- This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair.
- 【Features】- Thrust up to 1000 N in push.and up to 1000 N in pull. Built-in limit switches (not adjustable). Aluminium outer tube Ø30 mm, Aluminium inner tube ØØ24mm.
- 【The Best Service】: If you have any questions about the product, you can contact us at any time, we will reply you as soon as possible!.
| UPC | 722487612889 |
|---|---|
| Color | Black |
| Shape | Rectangular |
| Pattern | Solid |
| Back Style | Solid Back |
| Brand Name | YIYIBYUS |
| Style Name | Industrial |
| Unit Count | 1.0 Count |
| Form Factor | Recliner |
| Manufacturer | LIEASTGY |
| Model Number | 722487612889 |
| Material Type | Aluminum, Plastic |
| Seat Material | Plastic |
| Item Dimensions | 9.84 x 6.89 x 26.57 inches |
| Furniture Finish | Plastic |
| Additional Features | Reclining, Portable |
| Frame Material Type | Alloy Steel, Aluminum |
| Included Components | 1 x AC Adapter, 2 x Screw, 1 x Power Cord |
| Age Range Description | Adult |
| Surface Recommendation | Hard Floor |
| Reclining Position Count | 2 |
| Item Dimensions D x W x H | 9.84"D x 6.89"W x 26.57"H |
| Recommended Uses For Product | Relaxing, Home Use |
