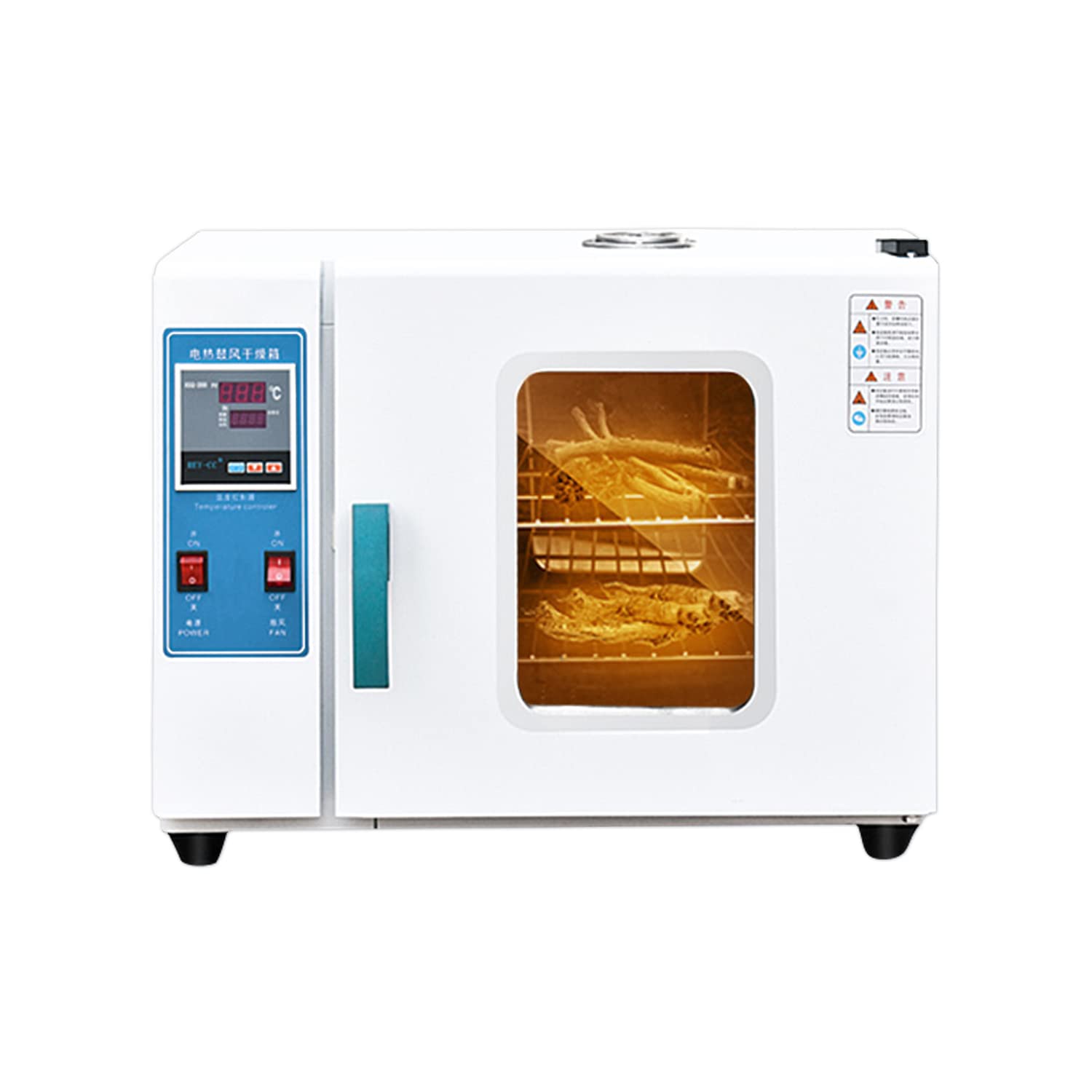

YUEWO 110V Laboratory and Industrial Heating Drying Ovens Precision High-Performance Ovens for Temperatures Up to 300℃ for Drying, Baking, Sterilizing, Evaporation, Temperature Testing (202-0B)

Description: This device is used for drying and heating processes under vacuum conditions at laboratories in enterprises, schools and scientific institutions. Heating and drying under vacuum condition shows the following advantages: a. Drying temperature can be lowered. (Low pressure and low temperature). b. Oxidation of some articles after heating can be avoided with no damages done by dust. c. Slaughter of biological cells caused by heated air can be avoided. Operate Steps: 1. Open the door, put the items that need to be dried on the partition inside the box, close the door, adjust the vent hole at the top of the instrument to the required state, and make appropriate according to the temperature of the dried item during the drying process. Adjustment. 2. Connect the power supply that requires the same equipment as the device, and ground the ground terminal of the power socket you are using. 3. Turn on the power switch and heating switch, the indicator light is on, the instrument starts to work, and the temperature control meter starts to display the temperature of the studio. 4. According to the temperature of the dried goods, you need to set the required temperature. 5. The instrument can turn on or off the fan cycle as needed. It must be noted that the device cannot be turned off during the heating process to avoid excessive aging of the heating components. 6. Turn off the power and heating switch of the equipment after the work is finished. It is recommended to wait for the equipment to cool before opening the door to deal with the problem. 7. It is recommended to use the device for self-tuning and temperature control for the first time to ensure accurate and safe use. Packing List: 1 X A Drying Oven Some gift accessory

• Professional Drying Oven: The oven is are composed of 4 parts, namely, the oven housing, chamber (working chamber), vacuuming system and temp-controlling system. Equipped with the R38 digital PID temperature controller; blast 3D Stereo Efficient Circulation Heating; low carbon energy saving.
• Superior Quality Material: The housing of our Drying Oven is made of high-quality thin sheets with a plastic-jet surface, presenting a colorful appearance; chemically resistant stainless steel liner; Force adjustable door handle and one-piece door sealing gasket maintain consistent vacuum level; Dual layer observation window with tempered safety glass for easy viewing of the heating of the studio.

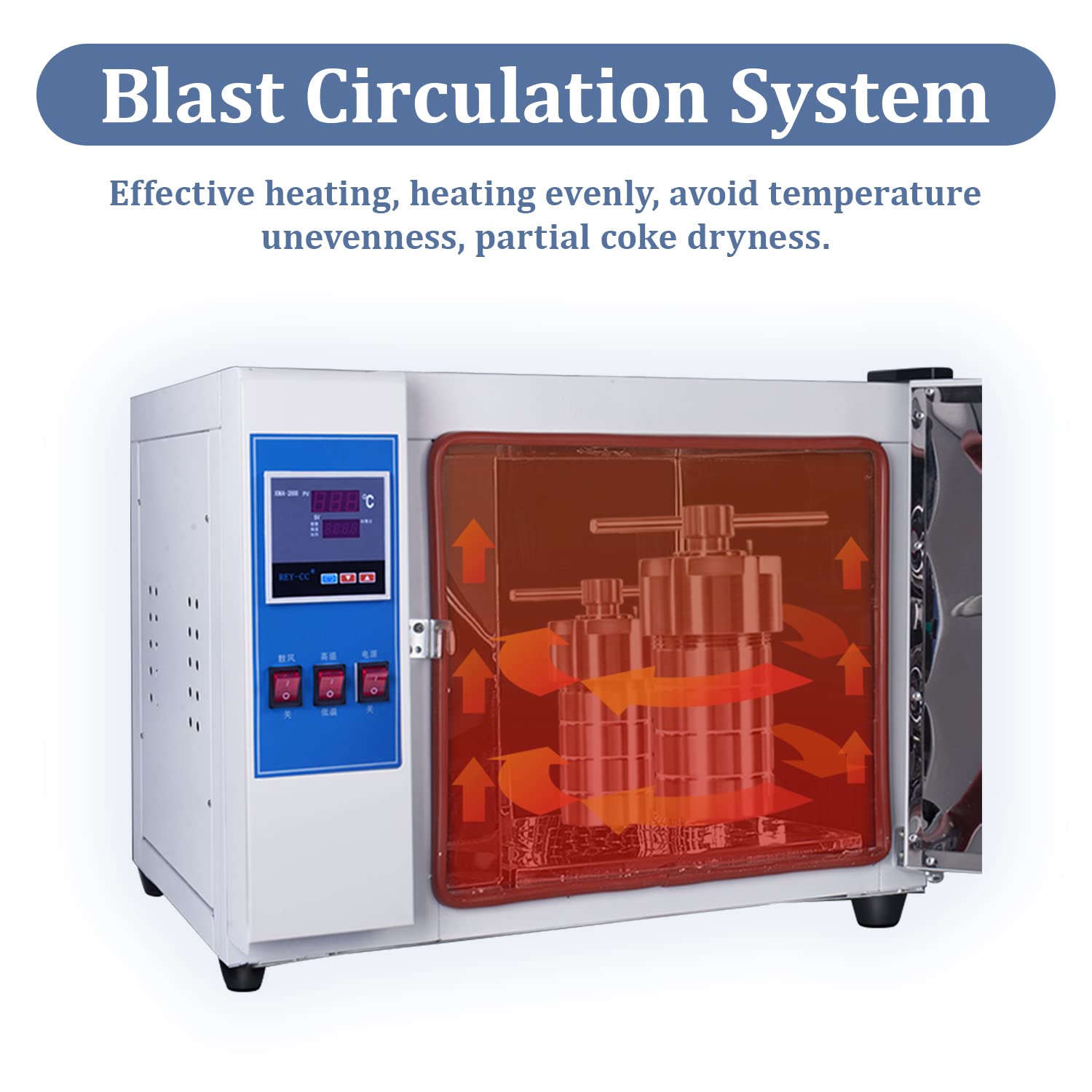

• Characteristic: Blast circulation system adopts the double air duct circulation of high temperature resistant and low noise fan, ensuring that the fan service life is longer and the temperature in the box is more uniform; Easy-to-clean heavy duty 304 stainless steel interior for exceptional durability and ease of maintenance; Synthetic silicone seal, beautiful shape, can run high temperature for long period of time.
• Intelligent PID Temperature Control: The temperature controller has a PID to adjust its output features. Its output power is adjustable and the temperature measuring errors can be corrected with timing function available. Besides, there are light alarm and automatic cut-off when the preset safe temperature is exceeded, which could guarantee the safety of the lab.
• Application: This Drying Oven is suitable for mine industry, research institution, various hospitals, medical sanitation labs for drying, baking, sterilizing, solidifying.
